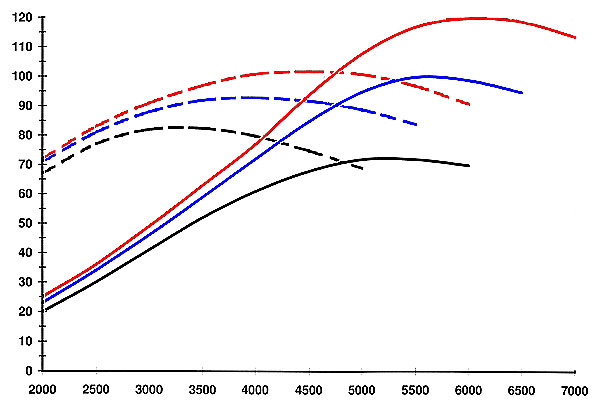

Horsepower & Torque Curves:

Stock

SuperStock

SuperStreet



Both the SuperStock and SuperStreet engines begin pulling stronger than stock from 3000rpm. The larger 34mm Weber single barrel carb, mild F4 cam, and better breathing lets the SuperStock produce strong midrange that really begins to pull at 4,000rpm all the way to 6,000rpm. The SuperStreet engine, with its 2-bbl Weber and stronger F66 cam really starts to come on strong from 5,000rpm to 6,500rpm. Both engines retain the same low end grunt that this little V4 engine is known for, they just emphasize it higher up where the stocker runs out of breath and rpm.



SuperStock V4 Engines

Better than original! These rebuilt engines are offered in both 1500 and 1700cc size. Heavy duty components like high flow oil pump, chrome moly rod bolts, light flywheel, Weber 34 ICH carb, and Isky F4 camshaft, make this little V4 rev higher and safer than stock. Puts out 100hp at 5,000 rpm, and retains a flat torque curve for real world driving. Call for more details.

Part#

4060

$5,500

Exchange





SuperStreet V4 Engines

Need more power? These rebuilt engines are offered in both 1500 and 1700cc size. Built with the same heavy duty components as the Super Stock engines, but with 2-bbl Weber Carburetor & Manifold. These fire breathers put out 120hp. Perfect for the Sonett owner wanting to go racing, or just blow off those pesky CRX's and GTi's!

Part#

4060B

$6,500

Exchange





Shipping Charges Extra

To Place An Order or Ask Jack A Question:

Call Jack: 1-541-779-0731

Fax Jack: 1-541-779-0788 Fax

E-Mail Jack: jackashcraft@charter.net

Please order carefully. There are no returns on parts ordered from this document. If the price list indicates a core charge, in most cases because of shortages of rebuildable used parts, we will require you to ship us your useable core before we will release the rebuilt part for shipment. In all cases shipping is extra. We ship UPS Ground Trac, and UPS 3-Day Air.
